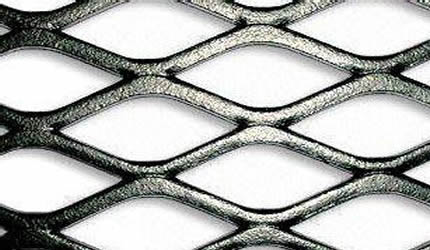

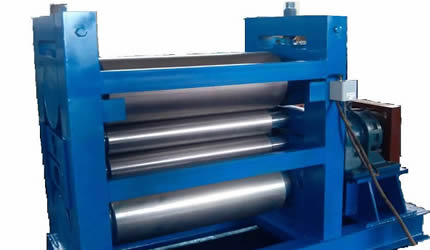

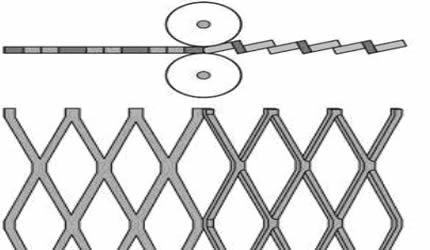

Expandedmetal mesh flatten machine is special designed for expanded metal flattening. It’sa necessary equipment of expanded metal production. It can make expanded wire meshsmoothly.And the flattened expanded metal is asked for many applications.
Wecan supply flatten machine in different width different design for differentmesh, such as four-roller flatten machine, two-roller flatten machine, manualflatten machine, hydraulic flatten machine, etc. Currently the machine isapplied to processing expanded metal with a maximum sheet thickness of 5mm and width between 0.5m to 2.5m.
Technicial Parameter:
Model | ZPJ800 | ZPJ1000 | ZPJ1300 | ZPJ1500 |
Flatten Width | 800mm | 1000mm | 1300mm | 1500mm |
Flatten Thickness | 0.5~3mm | 0.5~3mm | 0.5~3mm | 0.5~3mm |
Roller diameter | 300/280mm | 320/300mm | 350mm | 450/350mm |
Total weight | 2T/1.8T | 2.5T/2.8T | 4T | 6.5T/5.5T |
Total power | 3kw | 4kw | 5.5kw | 7.5kw |
